Security Patrol Robot

Security Patrol Robot

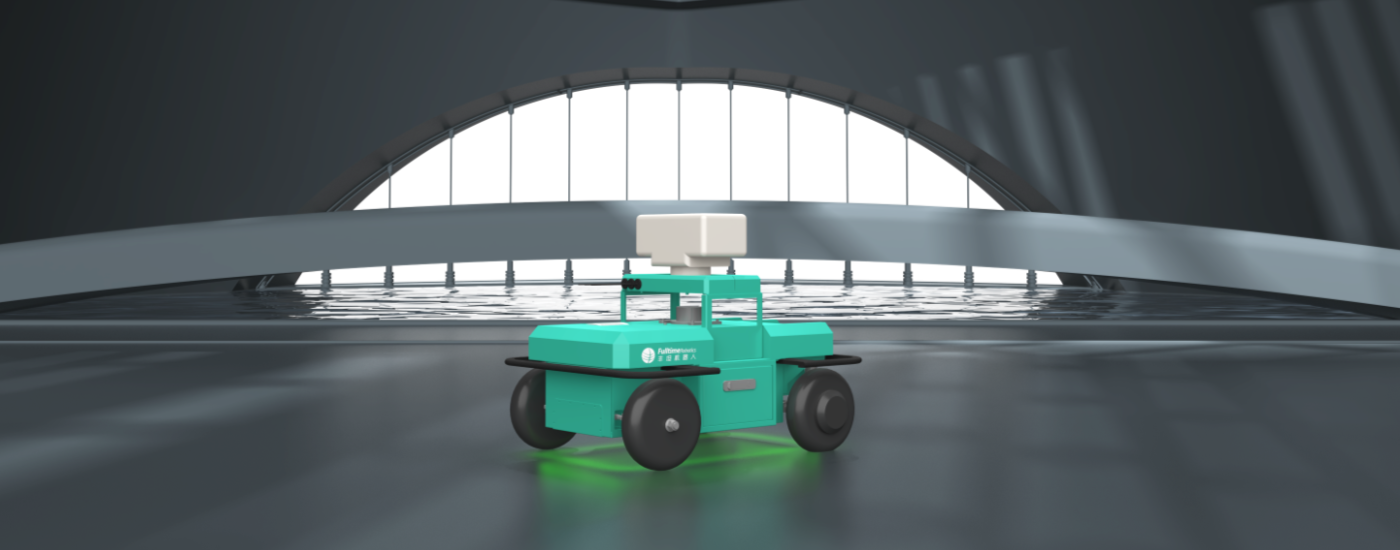

The Safety Patrol Robot is based on the application of construction site safety management, designed for safety patrol operations throughout the construction phase. It is an automatic patrol robot that supports on-site safety inspection, intelligent decision-making, and on-site safety control. The product focuses on unsafe human behaviors and unsafe conditions of objects, covering multiple management aspects including personnel management, equipment management, and quality safety supervision. It achieves informatization, visualization, and intellectualization of on-site personnel, equipment, and construction operation management. Through technologies such as AI and mobile robotics, it enables dynamic data display, intelligent early warning, effective supervision, and integrated safety management.

Product consultation

Product parameters

Indicator	Parameter
Weight	60kg
Body Dimensions	650mmX565mmX790mm
Working Height	≤3200mm
Movement	Driven by 2omni-directional wheels equipped with laser positioning
Duration	4h
MaximumSpeed	1.2m/s
Position Precision	±10mm
Brake Stopping Distance	≤0.1m
Turn Radios	Rotate in-situ with differential motion
Maximum Crossing Slope	≤15°
Body Material	Sheet metal, with G3 anti-corrosion specification
Charger	48V DC lithium iron phosphate battery
Charging Method	Manual
Communication Method	Wifi 2.4GHz/5GHz

Product video

Product advantages

High-precision AI algorithms for automatic identification, real-time environmental monitoring and reporting

Precise, reliable and efficient inspection

Efficient recording of inspection trajectories with obstacle stopping and bypassing functions.

High-precision AI algorithms for automatic identification, real-time environmental monitoring and reporting

Self-developed core AI visual recognition algorithm with a recognition rate of over 99%. Real-time video streams are overlaid with AI video frames, featuring low latency and high image quality.

Safety belt identification, safety helmet identification, high-visibility clothing identification, mask detection, unfastened chin strap, smoking, personnel gathering, etc.
Remote video viewing, capture, recording, and real-time upload to the management platform assist in construction site safety management, improving management efficiency and data retention.

Environmental data monitoring: environmental detection of smoke, open fire, etc., temperature, humidity, toxic and harmful gases, noise, etc.

Precise, reliable and efficient inspection

Self-developed high-performance construction robot software and hardware platform to achieve full-stack technology for high-quality inspection.

Self-developed high-performance construction robot controller hardware platform
- 6-layer PCB industrial-grade design with thousands of electronic components
- Achieves unified deployment of mechanical arms, chassis, sprayers, spray guns, etc.

Self-developed multi-sensor fusion algorithms for lidar, IMU, etc., to achieve high-quality mapping and positioning.
Self-developed navigation and planning algorithms to achieve high trajectory accuracy and repeat positioning accuracy in complex and changeable ground and muddy road environments.

Efficient recording of inspection trajectories with obstacle stopping and bypassing functions.

Real-time collection of robot inspection position and status information to achieve precise path tracking and adaptation to environmental changes in complex and dynamic environments.

Automatically record the operation trajectory and pose of the inspection robot.
Self-developed filtering algorithms to eliminate trajectory noise, and self-developed algorithms to smooth the trajectory.

By optimizing control strategies to predict the future and carry out effective planning, it is suitable for dynamic and complex environments.
It can adjust movements in real time in dynamic environments, making it suitable for obstacle stopping and bypassing tasks that require quick responses.

Application Cases

Batch project applications, with robots accumulating over 1,000,000 m² of construction.

Hefei Children's Hospital Project, Anhui

Suzhou Zhongyifeng Yangtze River Delta International R&D Community

Shenzhen Longgang District Construction Industry Ecological Intelligence Valley Base
