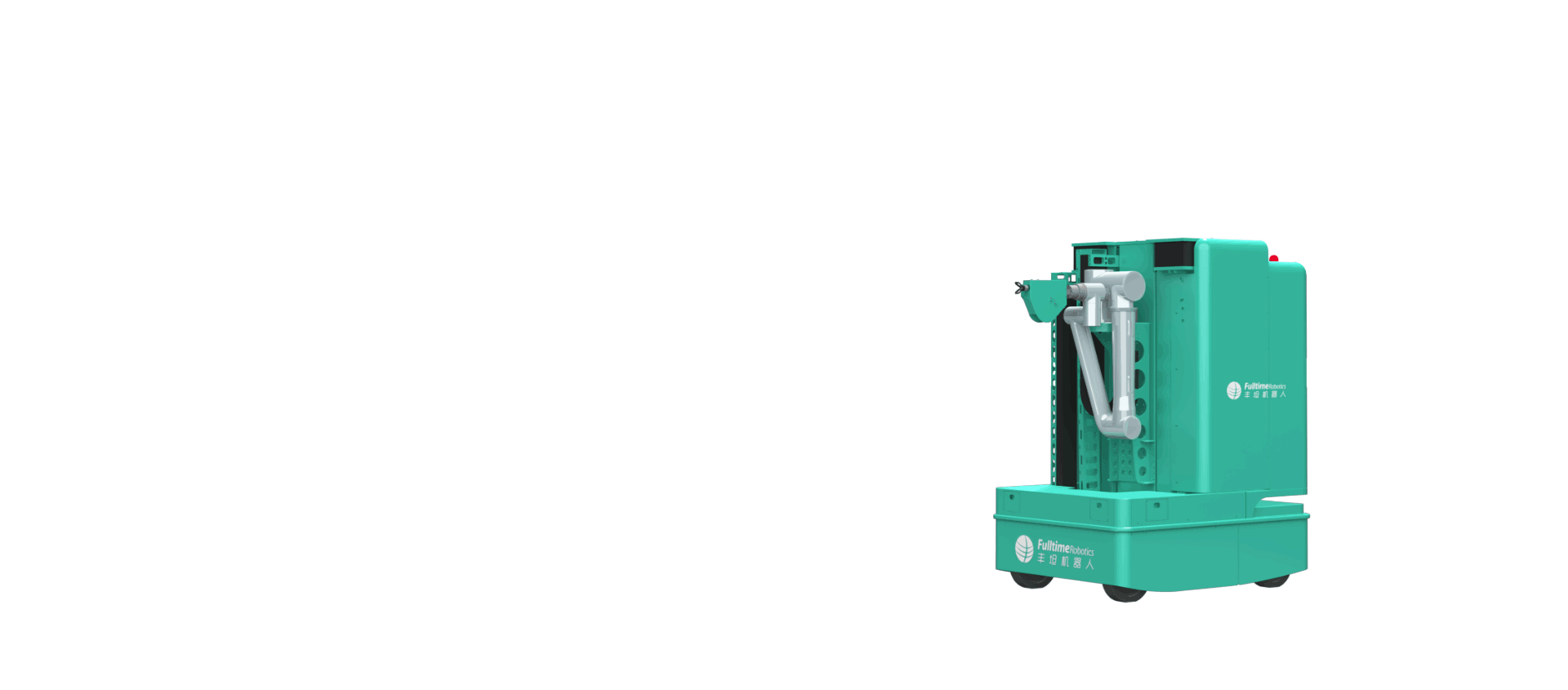

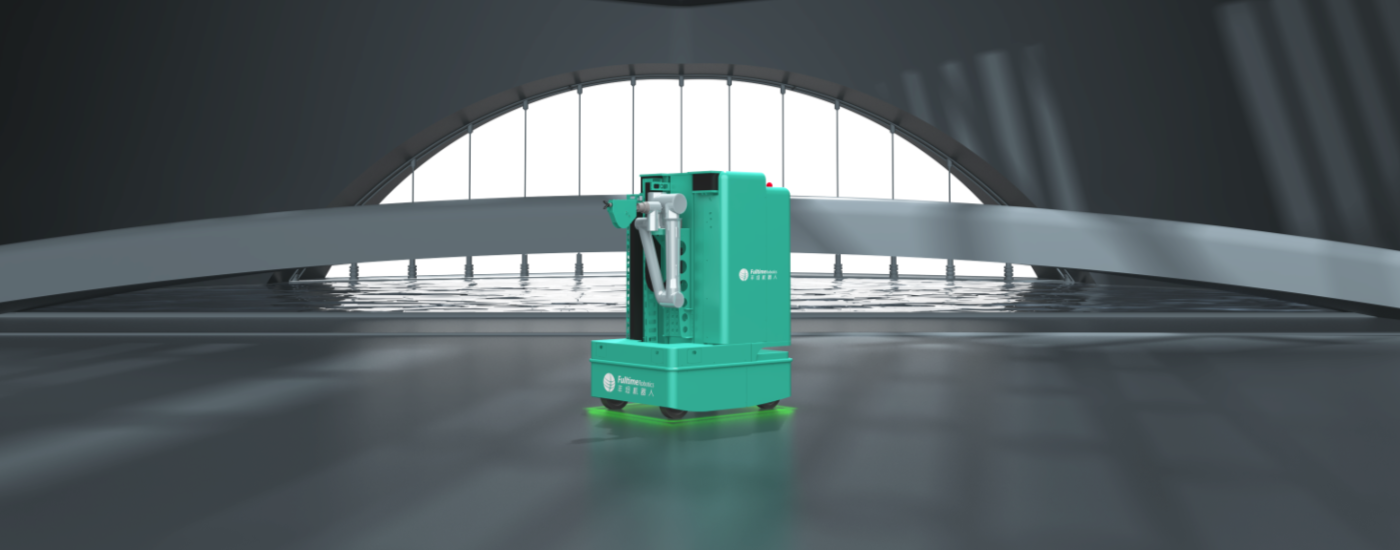

6-meter Spray-Painting Robot

The Spray Painting Robot 6m Model is suitable for paint construction on walls and ceilings of factories, venues, airports, transportation hubs, and other buildings with a floor height of less than 6 meters. This product features multi-functionality: by quickly replacing nozzles, it can spray multiple materials, including water-based materials such as latex paint and putty. With self-developed intelligent control systems and high-quality spraying process technology, it achieves uniform coating coverage, enhancing construction quality and efficiency. Whether for large-area painting or detailed treatment, it enables fast and efficient operation, significantly saving construction time and costs.

Choosing the Spray Painting Robot 6m Model will bring a more efficient, safe, high-quality, and precise construction experience to your building projects.

Product consultation

Product parameters


Indicator

Parameter

Weight of the Whole Machine

700kg

Overall Dimensions of the Whole Machine

1400mm×1080mm×1780mm

Spraying Height

≤6000mm

Spraying Mode

Four-wheel drive, laser positioning, trackless walking

Chassis Movement Speed

0.5m/s

Chassis Movement Method

Omnidirectional movement, no turning radius

Positioning Accurac

±30mm

Climbing Capacit

≤10°

Chassis Ditch - crossing Width50mm
Battery Life4h
Battery Capacity

48V 100AH DC lithium iron phosphate battery pack

Protection Class

IP54

Charging Method

Manual

Communication Method

Wifi 2.4GHz/5GHz

Spraying Efficiency

Putty: 1000~2000㎡/day

Spraying Materials

Latex paint, putty, putty powder, volcanic mud, anshifen (stone powder)

Spraying TypesWalls, ceilings, beams, entrance halls, bay windows, inside corners, outside corners


Product video

FulltimeRobotics FulltimeRobotics

Application Cases

Batch project application, the cumulative construction area of robots exceeds 1,000,000 square meters.

FulltimeRobotics

The project of Shanghai Construction Engineering Group

FulltimeRobotics

Renovation Project of Shanghai Urban Construction Archives

FulltimeRobotics

Shenzhen Jian'an Baoding Shenbao Park Chuangzhi Cloud Valley Project

FulltimeRobotics

Shanghai Meilong project of China Construction Third Engineering Bureau

FulltimeRobotics

Fujian Construction Engineering Nan'an Urban Cultural Tourism Complex Project

FulltimeRobotics

Project of Qilian Community, Baoshan District, Zhejiang Construction Engineering Group
