3.2-meter Spray-Painting Robot

3.2-meter Spray-Painting Robot

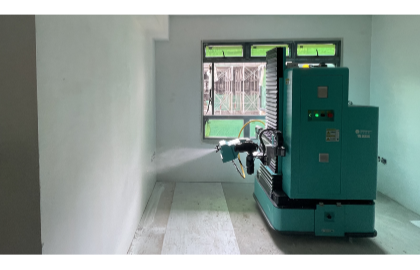

The 3.2-meter model of the spraying robot is suitable for scenarios with a height of less than 3.2 meters, such as residences, apartments, dormitories, hotels, public housing, HDB flats, prefabricated factories, etc., and can complete surface construction of walls, ceilings, internal and external corners, bay windows, vestibules, etc. The product features multi-functionality, and by quickly replacing the nozzle, it can achieve spraying of multiple materials, including water-based materials such as latex paint, putty, water spray coating, volcanic mud, etc.

With self-developed intelligent control systems and high-quality spraying process technologies, it can achieve uniform coating coverage, improving construction quality and efficiency. It can work quickly and efficiently for both large-area painting and detailed treatment, significantly saving construction time and costs.

Product consultation

Product parameters

指标	参数
Weight of the Whole Machine	≤500kg
Overall Dimensions of the Whole Machine	850mm×760mm×1780mm
Spraying Height	≤3200mm
Spraying Mode	Semi - automatic, Automatic
Chassis Movement Speed	≤0.5m/s
Chassis Movement Method	Omni - directional movement
Chassis Obstacle - crossing Height	≥30mm
Chassis Climbing Angle	≥10°
Chassis Ditch - crossing Width	≥50mm
Chassis Wading Depth	≥30mm
Battery Life	≥5h
Battery Capacity	173Ah (Lithium Iron Phosphate Battery)
Hopper Capacity	50L
Spraying Pressure	≤22Mpa
Spraying Flow Rate	≤8L/min
Spraying Pressure	Putty: 500 - 800m²; Natural latex paint: 2000 - 3000m² per day
Spraying Materials	Latex paint, putty, water
Spraying Types	Walls, ceilings, beams, entrance halls, bay windows, inside corners, outside corners

Product video

Product advantages

Multi-material compatibility

Multi-surface adaptability

Precision spraying and uniform coating

Standard scene automatic path planning and non-standard scene high-efficiency spraying

High reliability and easy maintenance

Adapt to various construction environments

Multi-material compatibility

It is widely compatible with various materials, and the robot spraying process package makes production more flexible and efficient.

Latex paint

Putty

Volcanic mud

Watering

Multi-surface adaptability

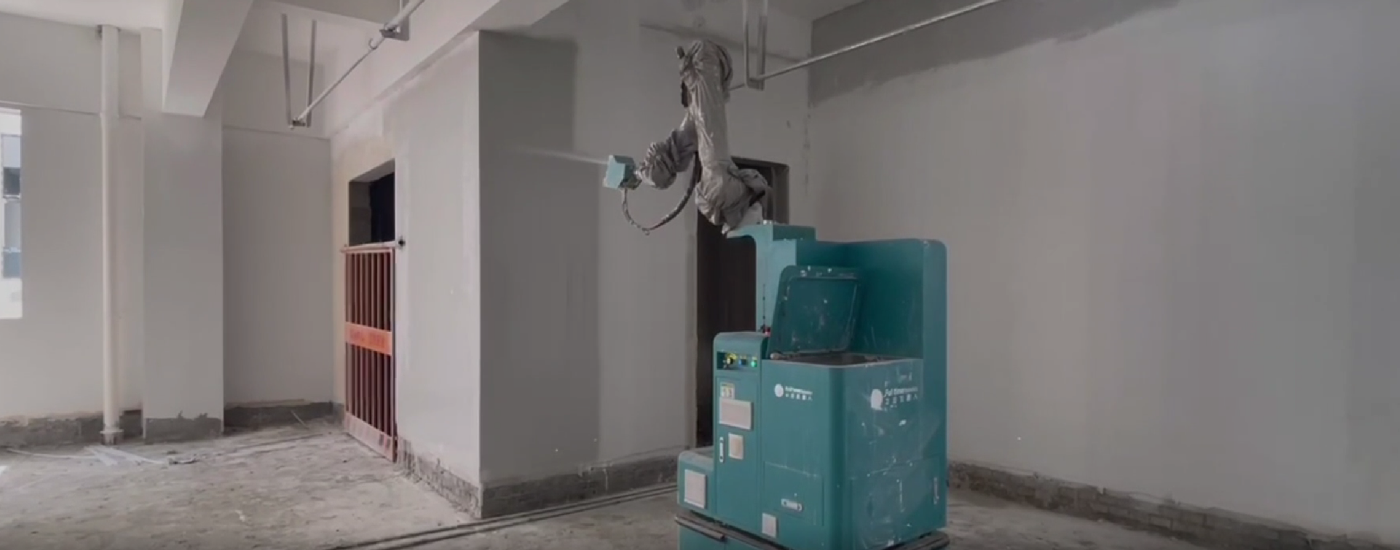

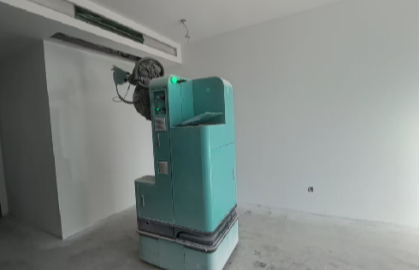

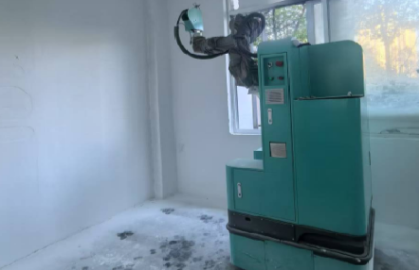

Easily spray in all directions to cope with surfaces such as walls, ceilings, bay windows, beams, etc.

walls

ceilings

bay windows

beams

Precision spraying and uniform coating

Self-developed high-performance construction robot software and hardware platform to achieve full-stack technology for high-quality spraying.

Self-developed high-performance construction robot controller hardware platform
6-layer PCB industrial-grade design with thousands of electronic components
Realize unified deployment of mechanical arms, chassis, spraying machines, spray guns, etc.

Self-developed high-performance construction robot controller hardware platform
6-layer PCB industrial-grade design with thousands of electronic components
Realize unified deployment of mechanical arms, chassis, spraying machines, spray guns, etc.

Standard scene automatic path planning and non-standard scene high-efficiency spraying

Fully automatic support for one-click import of BIM drawings, and semi-automatic spraying operations can be carried out without pre-mapping.

One-click import of BIM drawings, automatic area division and feature extraction
Automatically plan and generate construction paths and navigation maps
With collision detection, simulation and efficiency optimization for navigation paths and mechanical arm paths

One-click quick switch to semi-automatic mode
No pre-mapping required, automatically plans paths and performs spraying operations along walls
Multi-sensor fusion algorithm, high-precision path following algorithm

High reliability and easy maintenance

Designed with high durability, full enclosure, and easy operability to improve product usage efficiency.

The spray gun adopts an integrated structural design, and redundant designs are added for safety and reliability.
The rotational degree of freedom of the feed inlet is increased to prevent the material pipe from bending and damage.

Fully enclosed body design with comprehensive protection for components ensures long-term stable operation of the equipment.
The whole machine is easy and efficient to maintain, which greatly shortens the maintenance time and improves product usage efficiency.

Adapt to various construction environments

A chassis platform specially designed for construction environments, adapting to various complex construction environments indoors and outdoors.

Self-developed high-reliability omnidirectional robot steering wheels
- Minimalist structural design with protection grade above IP54
- Standardized steering wheels for easy installation and maintenance
- Small turning radius for higher overall stability

Self-developed universal omnidirectional four-wheel drive mobile chassis platform
- Obstacle crossing height: 30mm, climbing ability: 10°, ditch crossing width: 50mm, wading depth: 30mm
- Adopts durable materials and protective design, with excellent dustproof, waterproof and anti-corrosion performance, which greatly extends the service life of the robot

Application Cases

Batch project application, the cumulative construction area of robots exceeds 1,000,000 square meters.

The Prac Residences project in Tengah, Singapore

The Agile Sino - Ocean Park Lane Project in Wuxi

iangmen Hailong Prefabricated Factory
